Donaldson

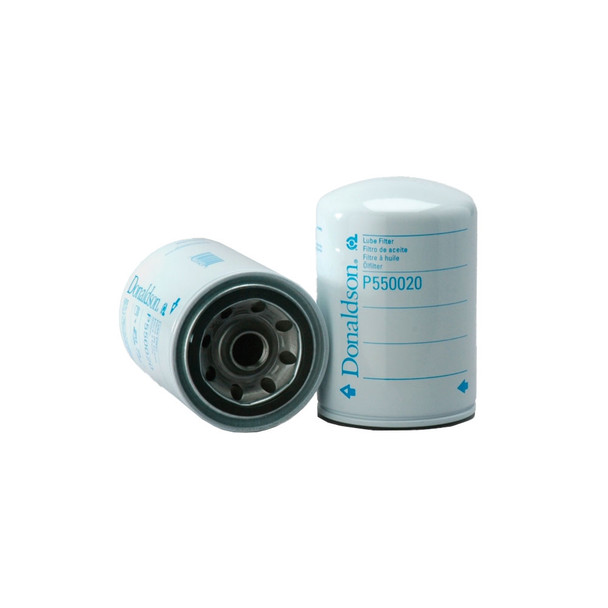

Donaldson | Spin-on Oil Filter | John Deere | P550020
NEW CUSTOMERS
SAVE 5% ON ORDERS OVER $100
USE PROMO CODE "SAVEIT"
- SKU:
- DOP550020
- Weight:
- 1.50 LBS
Description
Brand: DO - Donaldson
Part Description: Donaldson | Spin-on Oil Filter | John Deere
Our Part Number: P550020
Cross Reference Numbers: 103852, 121978, 1220610, 12311200, 1243, 1243MP, 16017310V, 1601731OV, 16470300, 16991673990, 184360, 195873, 223604, 2311200, 25011162, 25017, 29229328, 2NP550020, 303483584, 3132302, 330360001, 35308030, 36010678, 38480828, 3I1089, 4002920000, 42920, 451104005, 451104005850, 51243, 51243MP, 5276312, 531113, 537984, 5597006, 58755, 6005012019, 6005012109, 6436383, 6437968, 6511730, 6665983, 66728001, 688152, 69016709, 7000014640, 7079711, 77010793, 811247, 8320239, 85243, 85243MP, 8614097, 92243, 92243MP, 928014, 92801417, 94746, 949S, 9576P550020, 9613322, 998457R91, 9Y4450, A003Y, A26, AF503, AP3411, AP3411A, AR58956, AT19044T, AW143, AZL029, BC1039, BT259, C7910, CLH7272, CN51243, CW243MP, DNP550020, DO277, DXT51US, E6605, ELH4301, ELH4302, F10, FF247EC, FL175, FO3713, FP20, FS19250, FS550020, FT4580, G14, GH2000, GL329, GP14, GP14M, H15W, H17W09, IF4031, K200073, L30015, L317, L39, L39A, L94746, LF340, LF550020, LF678, LFP20, LFR8678, LK3411, LS168, MH376X, ML30015, MPL860, MT51US, OC103, OK68, P15, P339, P340, P550020, PC24, PER306, PF17, PF28, PH20, PH20A, PHM20, PLJD15, PM339, PSL190, QS20, R15, S854, SF19, SF21, SFO0678, SO014, SP414, SP4280, SP808, SRPPF20, SRPPH20, T19044, T19044D, T19044T, T19044TH, T19044TL, T1944, UR15, VPD5015, W9364, W93640, WD198, WGL678, Y1001, Z32, Z33, ZP503
Product Notes:
-Outer Diameter: 3.82 inch (97 mm)
-Thread Size: 13/16-16 UN
-Length: 5.51 inch (140 mm)
-Gasket OD: 2.80 inch (71 mm)
-Gasket ID: 2.40 inch (61 mm)
-Efficiency: 99% 40 micron
-Bypass Valve: Yes
-Bypass Valve Setting LR: 17 psi (1.2 bar)
-Bypass Valve Setting HR: 23 psi (1.6 bar)
-Media Type: Cellulose
-Collapse Burst: 200 psi (13.8 bar)
-Type: Full-Flow
-Style: Spin-On
-Primary Application: JOHN DEERE AR58956
Using and/or handling these products may expose you to chemicals that include toluene and/or benzene, which are known by the State of California to cause cancer, birth defects and/or other reproductive harm. Learn More at p65warnings.ca.gov
VERIFY FITMENT
Applications are provided as reference only. Please verify fitment by cross-referencing your original part number with the numbers provided on this page.
RETURNING USED CORES
Most remanufactured parts require a core charge. If you purchase an item from Cardinal Parts that requires a core charge, you will be eligible for core credit upon returning your old core unit within 30 days. Return the core in the box you received your new/reman product in. If the box is damaged, contact us at Support@CardinalParts.com.
Please Note:
-Drain fluids from the core, place it in a plastic bag to prevent leakage, and pack it in the box.
-Incomplete, burnt, tampered, damaged, or disassembled cores will not be accepted.
-Customers are responsible for return shipping costs. For questions, contact us at 888-314-7222.
