CAPS Fuel Pump Modifications
ATTENTION:
The supplied pump (Grizzly PN 4076442RX) is supplied with the latest style pressure and temperature sensors. Modifications to your original vehicle wiring harness may be required. Use the images below to indentify your originally supplied pump to determine if these modifications are needed.
Style 1:
Combined pressure and temperature sensor. Use kit part # 4089442

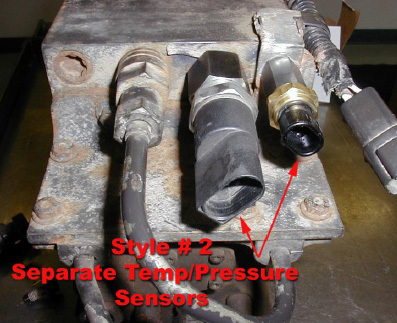

Style 2:
Separate pressure and temperature sensor; where the pressure sensor does not have a pigtail. Use kit part # 4089441

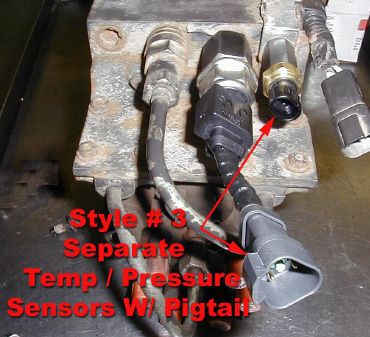

Style 3:
Separate pressure and temperature sensor; where the pressure has a pigtail. No wiring modification required.
